SAQ-37 Series
SAQ-37A-8
- Dynamic Speaker
- Non-washable
- Heat Resistant
- Enclosure model
- High SPL
- Auto Mounting
- Automotive Use
- *As for non washable products, dip soldering should not be implemented.
Specifications
| SAQ-37A-8 | |
|---|---|
| Nominal Input（W） | 0.5 |
| Impedance（Ω） | 8 (2kHz 0.5Vrms) |
| * SPL（dB/1m） | ≧78 (1kHz, Sine signal, 0.5W , 1m) |
| Operating Temperature（℃） | -40 ～ +105 |
| Storage Temperature（℃） | -40 ～ +120 |
| Mass（g） | 13 |

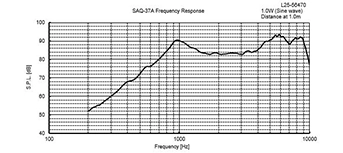

Frequency Response
（SAQ-37A-8）
Dimensions（size：φ37x17mm）
（SAQ-37A-8）
- *Consult us fir the details of variation and installation method.
Before using our products, please read the technical data which explains the characteristics of our products as well as precautions.
