Vibration Actuator
Product number
576865
Reference only
Specification

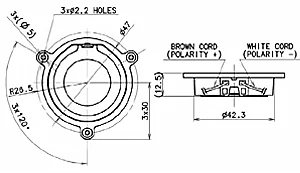

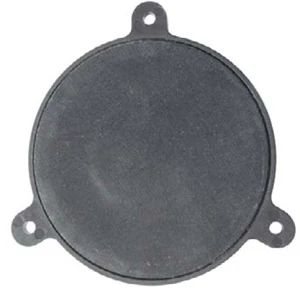

| Size | φ47mm |
|---|---|
| Impedance | 6Ω |
| Nominal Power | 5W |
| F0 | 75Hz |
| Net Weight | 60g |
Product number
639897
Reference only
Specification

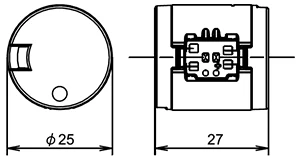

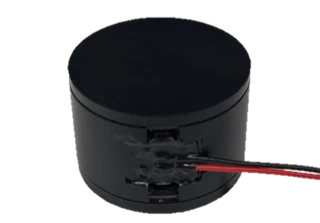

| Size | φ25mm x 27mm |
|---|---|
| Impedance | 5.7Ω |
| Rated Input Voltage | 1.0Vrms |
| Maximum acceleration frequency | 65Hz |
| Vibration acceleration | 2.61Gp-p at 65Hz (200g) |
| Net Weight | 28.0g |
Click here for video
Product number
646752
Reference only
Specification

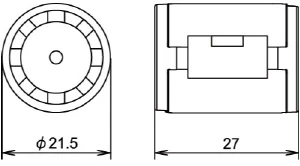

| Size | φ21.5 x 27mm |
|---|---|
| Impedance | 6.7Ω |
| Rated Input Voltage | 1.5Vrms |
| Maximum acceleration frequency | 60Hz |
| Vibration acceleration | 3.5Gp-p |
| Net Weight | 28.0g |
Product number
VDA-09 (Product under development)
Specification
Wide-band Vibration, High response, Ultra-Small Size, Large Amplitude, Low F₀
Product number
668242 (Product under development)
Specification
| Size | φ30 x 20mm |
|---|---|
| Impedance | 6Ω |
| Rated Input Voltage | 1.4Vrms |
| Maximum Acceleration Frequency | 70Hz |
| Vibration Acceleration | 4.5Gp-p |
| Net Weight | 37g |
Inquiry
We will propose the optimal product tailored to your needs. Please feel free to contact us.
