SAL-40 Series
SAL-40A
- Dynamic Speaker
- Non-washable
- Heat Resistant
- Enclosure model
- High SPL
- Automotive Use
- *As for non washable products, dip soldering should not be implemented.
Specifications
| SAL-40A | |
|---|---|
| Nominal Input（W） | 0.5 |
| Impedance（Ω） | 8±1.2 |
| Resonance Frequency（Hz） | 735±100 |
| * SPL（dB/10cm） | 94dB以上 |
| Operating Temperature（℃） | -40 ～ +105 |
| Storage Temperature（℃） | -40 ～ +120 |
| Mass（g） | 20.5±3g |
* Valure applying nominal input（sine wave, average of 1K, 1.6K, 2K, 3.2Khz）

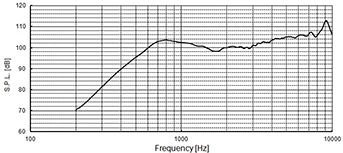

Frequency Response
（SAL-40A-8-L37ML）
Dimensions（size：φ48x16mm）
（SAL-40A-8-L37ML）
- *Consult us fir the details of variation and installation method.
SAL-40C
- Dynamic Speaker
- Non-washable
- Heat Resistant
- High SPL
- Automotive Use
- *As for non washable products, dip soldering should not be implemented.
Specifications
| SAL-40C | |
|---|---|
| Nominal Input（W） | 1.0 |
| Impedance（Ω） | 8±1.2 |
| * SPL（dB/1m） | ≧116dB (500Hz to 2kHz、1.0W、sine wave、1cm) |
| Operating Temperature（℃） | -40 ～ +105 |
| Storage Temperature（℃） | -40 ～ +120 |
| Mass（g） | 16.2g |
* Valure applying nominal input（sine wave, average of 1K, 1.6K, 2K, 3.2Khz）

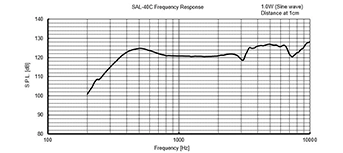

Frequency Response
（SAL-40C）
Dimensions（size：φ48x10mm）
（SAL-40C）
- *Consult us fir the details of variation and installation method.
Before using our products, please read the technical data which explains the characteristics of our products as well as precautions.
