Speakers

General Speakers

  • Product number
    Specification
  • 054115
    ■Specifications
    Size φ50mm
    Nominal Impedance 8Ω
    Nominal Power 2W
    F0 230Hz ± 46Hz
    Effective Frequency Band f0 - 20kHz
    Sound Pressure Level 83dB ± 2dB
    Net Weight 85g
  • 411214
    ■Specifications
    Size φ57mm
    Nominal Impedance 8Ω
    Nominal Power 4W
    F0 140Hz ± 28Hz
    Effective Frequency Band f0 - 28kHz
    Sound Pressure Level 82dB ± 2dB
    Net Weight 172g
  • 000181
    ■Specifications
    Size φ65mm
    Nominal Impedance 8Ω
    Nominal Power 1.5W
    F0 240Hz ± 48Hz
    Effective Frequency Band f0 - 13kHz
    Sound Pressure Level 87dB ± 2dB
    Net Weight 110g

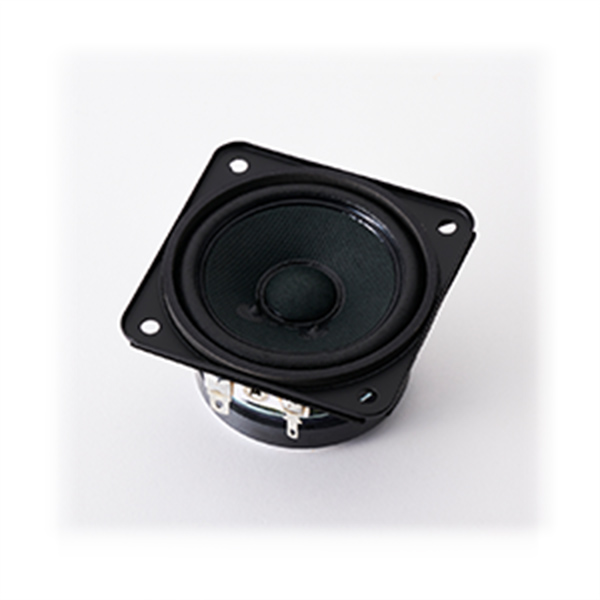

  • 411209
    ■Specifications
    Size φ65mm
    Nominal Impedance 8Ω
    Nominal Power 10W
    F0 125Hz ± 25Hz
    Effective Frequency Band f0 - 20kHz
    Sound Pressure Level 82.5dB ± 2dB
    Net Weight 240g
  • 000279
    ■Specifications
    Size φ80mm
    Nominal Impedance 8Ω
    Nominal Power 1W
    F0 220Hz ± 44Hz
    Effective Frequency Band f0 - 5kHz
    Sound Pressure Level 84dB ± 2dB
    Net Weight 70g
  • 043417
    ■Specifications
    Size φ80mm
    Nominal Impedance 8Ω
    Nominal Power 2W
    F0 240Hz ± 48Hz
    Effective Frequency Band f0 - 12kHz
    Sound Pressure Level 82.5dB ± 2dB
    Net Weight 55g
  • 000320
    ■Specifications
    Size φ80mm
    Nominal Impedance 8Ω
    Nominal Power 4W
    F0 300Hz ± 60Hz
    Effective Frequency Band f0 - 15kHz
    Sound Pressure Level 85.5dB ± 2dB
    Net Weight 120g
  • 477962
    ■Specifications
    Size φ80mm
    Nominal Impedance 8Ω
    Nominal Power 10W
    F0 125Hz ± 25Hz
    Effective Frequency Band f0 - 15kHz
    Sound Pressure Level 84dB ± 2dB
    Net Weight 381g
  • 000460
    ■Specifications
    Size φ100mm
    Nominal Impedance 8Ω
    Nominal Power 2W
    F0 150Hz ± 30Hz
    Effective Frequency Band f0 - 12kHz
    Sound Pressure Level 87dB ± 2dB
    Net Weight 170g
  • 612586
    ■Specifications
    Size φ100mm
    Nominal Impedance 7.5Ω
    Nominal Power 25W
    F0 85Hz ± 17Hz
    Effective Frequency Band f0 - 10kHz
    Sound Pressure Level 81.5dB ± 2dB
    Net Weight 341g
  • 000698
    ■Specifications
    Size φ120mm
    Nominal Impedance 8Ω
    Nominal Power 3W
    F0 160Hz ± 32Hz
    Effective Frequency Band f0 - 14kHz
    Sound Pressure Level 89dB ± 2dB
    Net Weight 187g
  • 000251
    ■Specifications
    Size 70 x 40mm
    Nominal Impedance 8Ω
    Nominal Power 2W
    F0 250Hz ± 40Hz
    Effective Frequency Band f0 - 20kHz
    Sound Pressure Level 82dB ± 2dB
    Net Weight 53g
  • 000436
    ■Specifications
    Size 90 x 50mm
    Nominal Impedance 8Ω
    Nominal Power 3W
    F0 170Hz ± 34Hz
    Effective Frequency Band f0 - 18kHz
    Sound Pressure Level 85dB ± 2dB
    Net Weight 175g
  • 612589
    ■Specifications
    Size 90 x 50mm
    Nominal Impedance 8Ω
    Nominal Power 10W
    F0 165Hz ± 33Hz
    Effective Frequency Band f0 - 15kHz
    Sound Pressure Level 85dB ± 2dB
    Net Weight 147g
  • 001007
    ■Specifications
    Size 156 x 104mm
    Nominal Impedance 8Ω
    Nominal Power 3W
    F0 140Hz ± 20Hz
    Effective Frequency Band f0 - 9kHz
    Sound Pressure Level 89dB ± 2dB
    Net Weight 282g
  • 411207
    ■Specifications
    Size 95 x 41mm
    Nominal Impedance 8Ω
    Nominal Power 3W
    F0 140Hz ± 28Hz
    Effective Frequency Band f0 - 20kHz
    Sound Pressure Level 81dB ± 2dB
    Net Weight 140g
  • 049350
    ■Specifications
    Size 120 x 30mm
    Nominal Impedance 8Ω
    Nominal Power 3W
    F0 205Hz ± 41Hz
    Effective Frequency Band f0 - 13kHz
    Sound Pressure Level 81.5dB ± 2dB
    Net Weight 55g

Before using our products, please read the technical data which explains the characteristics of our products as well as precautions.

Technical data
Download PDF（2.63MB）
Caution for using
Download PDF（200KB）
