TMB Series
TMB-05B、TMB-12B
- Electric Sound type
- Non-washable / washable
- Dip Solder
- Low Current Consumption
- Small
- Automotive Use
Specifications
| TMB-05B | TMB-12B | |
|---|---|---|
| Rated Voltage（V） | 5 | 12 |
| Operating Voltage（V） | 4～6.5 | 8～16 |
| * Mean Current Consumption（mA） | MAX30（TYP22） | MAX30（TYP15） |
| * SPL at MIN 10cm（dBA） | MIN85（TYP90） | |
| * Basic Frequency（Hz） | 2,300±300 | |
| ☆Response Time（msec） | MAX50 | |
| Operating Temperature（℃） | -40 ～ +85 | |
| Storage Temperature（℃） | -40 ～ +105 | |
| Mass（g） | 2 | |
* Value applying rated voltage ☆Value applying min. operating voltage

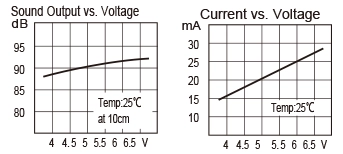

Frequency Response
（TMB-05B）
（TMB-12B）
Dimensions（size：φ12×9.5mm）
（TMB-05B）
Before using our products, please read the technical data which explains the characteristics of our products as well as precautions.
