Speakers

Micro Speakers

  • Product number
    Specification
  • 406009
    ■Specifications
    Size φ28mm
    Type Dynamic
    Nominal Impedance 8.0Ω ± 15%
    Nominal Power 0.5W
    Maximum Power 1.0W
    Resonance Frequency 670Hz ±134Hz
    Frequency Response -
    Sound Pressure Level 82dB ± 2dB
    Net Weight 5.2g
  • 418382
    ■Specifications
    Size φ28mm
    Type Dynamic
    Impedance 8.0Ω ± 15%
    Nominal Power 1.0W
    Maximum Power 2.0W
    Resonance Frequency 600Hz ± 90Hz
    Frequency Response 300Hz - 20kHz
    Sound Pressure Level 79.0dB ± 2dB
    Net Weight 5.1g
  • 022712
    ■Specifications
    Size φ32mm
    Type Dynamic
    Impedance 8.0Ω ± 15%
    Nominal Power 0.5W
    Maximum Power 1.0W
    Resonance Frequency 540Hz ± 90Hz
    Frequency Response 300Hz - 6.5kHz
    Sound Pressure Level 81.0dB ± 2dB
    Net Weight 6.8g
  • 434156
    ■Specifications
    Size φ36mm
    Type Dynamic
    Impedance 8.0Ω ± 15%
    Nominal Power 0.5W
    Maximum Power 1.0W
    Resonance Frequency 570Hz ± 90Hz
    Frequency Response 400Hz - 5.2kHz
    Sound Pressure Level 83.0dB ± 2dB
    Net Weight 7.5g
  • 022857
    ■Specifications
    Size φ40mm
    Type Dynamic
    Impedance 8.0Ω ± 15%
    Nominal Power 0.5W
    Maximum Power 1.0W
    Resonance Frequency 470Hz ± 80Hz
    Frequency Response 250Hz - 5.5kHz
    Sound Pressure Level 81.5dB ± 2dB
    Net Weight 8.5g
  • 420998
    ■Specifications
    Size φ45mm
    Type Dynamic
    Impedance 8.0Ω ± 15%
    Nominal Power 1.5W
    Maximum Power 3.0W
    Resonance Frequency 600Hz ± 100Hz
    Frequency Response 300Hz - 5kHz
    Sound Pressure Level 82.0dB ± 2dB
    Net Weight 12.5g
  • 044020
    ■Specifications
    Size 35 x 20mm
    Type Dynamic
    Nominal Impedance 8.0Ω ± 15%
    Nominal Power 0.5W
    Maximum Power 1.0W
    Resonance Frequency 590Hz ± 100Hz
    Frequency Response -
    Sound Pressure Level 79dB ± 2dB
    Net Weight 6.2g

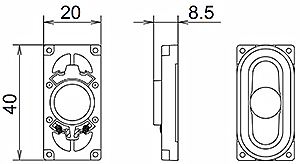

  • 043961
    ■Specifications
    Size 40 x 20mm
    Type Dynamic
    Impedance 8.0Ω ± 15%
    Nominal Power 1.0W
    Maximum Power 2.0W
    Resonance Frequency 480Hz ± 96Hz
    Frequency Response 260Hz - 20kHz
    Sound Pressure Level 79.5dB ± 2dB
    Net Weight 6.9g
  • 059532
    ■Specifications
    Size 40 x 20mm
    Type Dynamic
    Nominal Impedance 8.0Ω ± 15%
    Nominal Power 1.0W
    Maximum Power 2.0W
    Resonance Frequency 480Hz ± 96Hz
    Frequency Response 260Hz - 20kHz
    Sound Pressure Level 79.5dB ± 2dB
    Net Weight 7.5g

Before using our products, please read the technical data which explains the characteristics of our products as well as precautions.
