TMB Series

TMB-05B, TMB-12B

Electric Sound typeNon-washable / washableDip SolderLow Current ConsumptionSmallAutomotive Use

Specifications

  TMB-05B TMB-12B
Rated Voltage(V) 5 12
Operating Voltage(V) 4~6.5 8~16
※ Mean Current Consumption(mA) MAX30(TYP22) MAX30(TYP15)
※ SPL at MIN10cm(dB) MIN85(TYP90)
※ Basic Frequency(Hz) 2,300±300
☆Response Time(msec) MAX50
Operating Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +105
Mass(g) 2

※Value applying rated voltage ☆Value applying min. operating voltage

Frequency Response

(TMB-05B)

(TMB-12B)

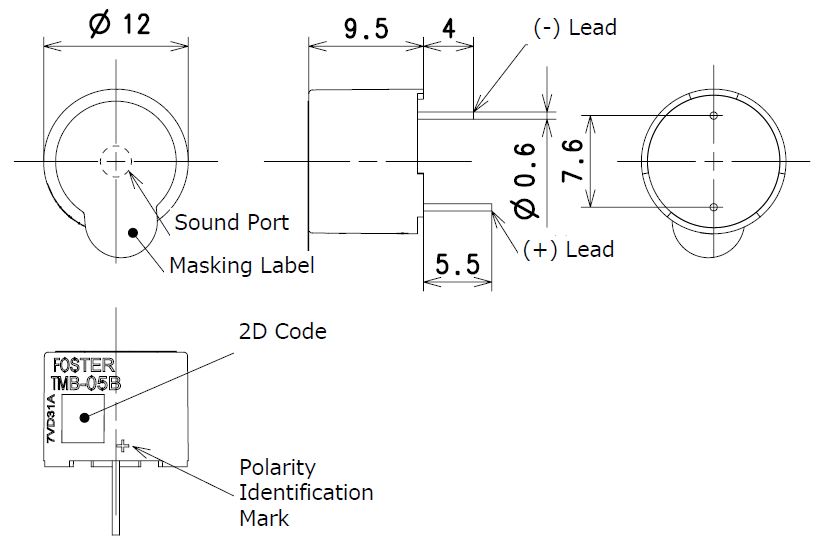

Dimensions(size:φ12×9.5mm)

(TMB-05B)

unit:mm/housing material:PPE-M

※ Longer pin is(+)polarity

Before using our products, please read the technical data which explains the characteristics of our products as well as precautions.

Technical data
Caution for using
